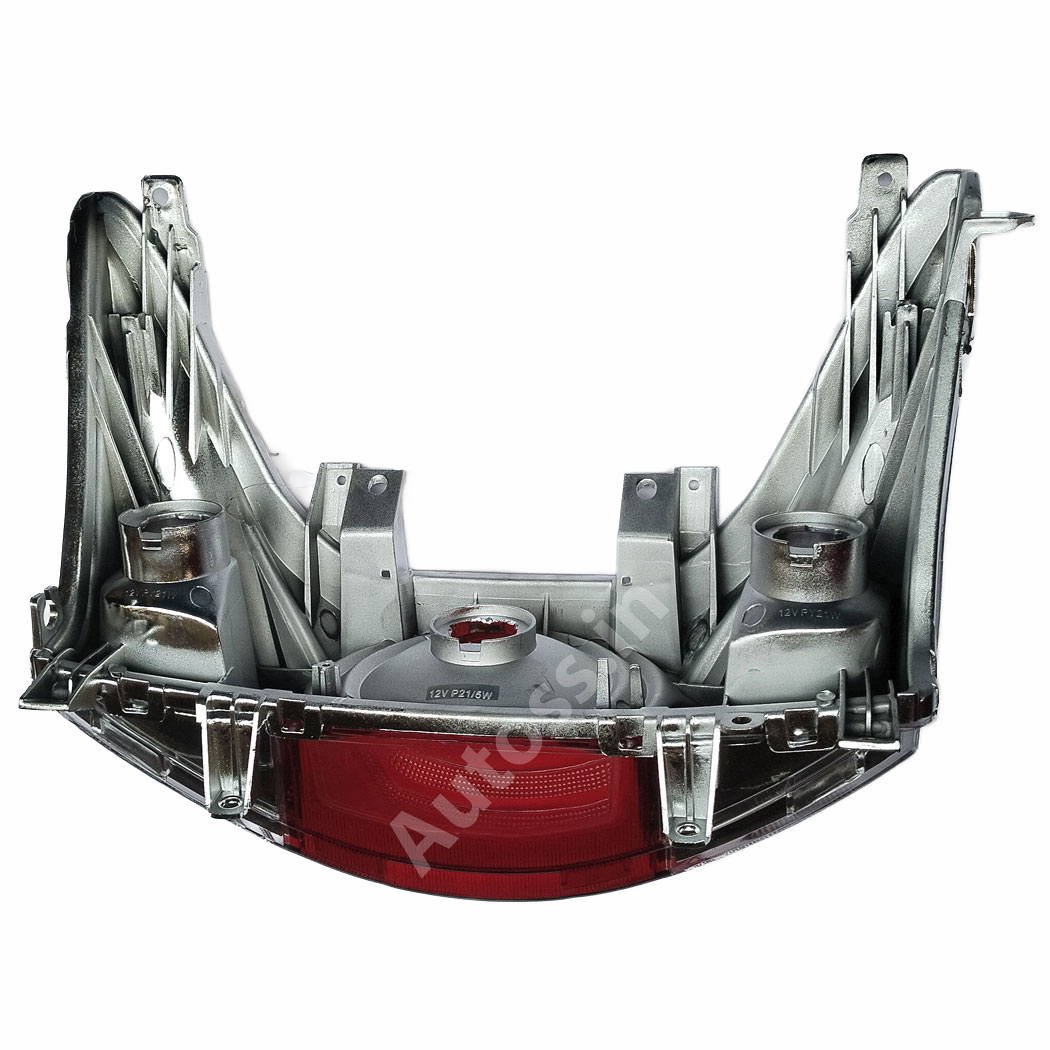

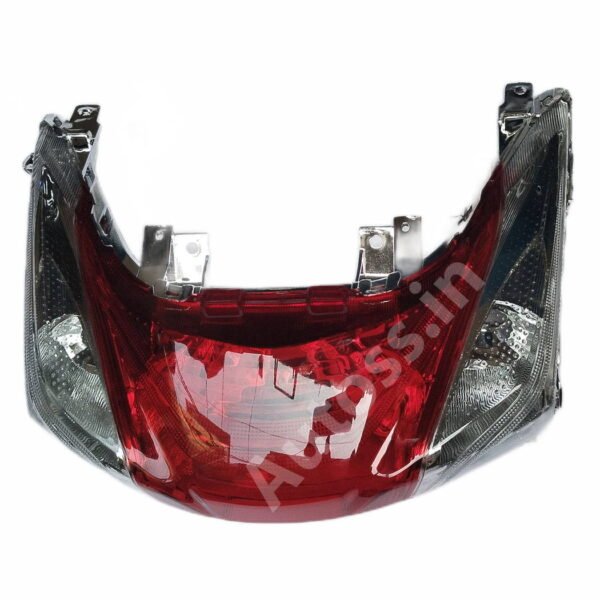

TAIL LIGHT ASSEMBLY HONDA ACTIVA 3G

The Tail Light Assembly Honda Activa 3g delivers brilliant high-candela rear visibility, instant brake application illumination, and weatherproof hermetic sealing for your two-wheeler. Manufactured to strict original equipment manufacturer standards with UV-stabilized PMMA optical lenses and high-reflectivity vacuum-aluminized chambers, this complete rear tail light assembly replaces cracked, cloudy, or malfunctioning factory lamps, restoring crucial nighttime safety, crisp brake warning response, and pristine showroom styling.

Workshop Guide & Diagnostic Standards for Tail Light Assembly Honda Activa 3g

Equipping your vehicle with this genuine-spec Tail Light Assembly prevents dangerous rear-end collisions during night rides and torrential rain, eliminates lens condensation fogging, and ensures full compliance with motor vehicle lighting safety standards.

1. High-Transmittance UV-Stabilized PMMA Optical Lens Metallurgy

Precision injection molded from optical-grade polymethyl methacrylate (PMMA) acrylic polymer, the outer red and amber fluted lenses provide superior light transmission exceeding 92%. Formulated with specialized UV-stabilizer additives, the lens resists sun-induced discoloration, haze, and embrittlement, maintaining brilliant ruby red depth across years of outdoor parking.

2. Vacuum-Metalized High-Reflectivity Parabolic Chamber

The internal reflector cavity is molded from heat-resistant polymer and vapor-coated with high-purity aluminum under vacuum. This parabolic mirror design maximizes luminous intensity from internal light sources, broadcasting a brilliant, wide-angle warning beam that alerts following vehicles from hundreds of meters away.

3. Hermetic Weatherproof Closed-Cell Neoprene Sealing Gasket

The perimeter junction between the outer lens and back housing is protected by a continuous closed-cell elastomeric neoprene gasket. Compressed under factory clamping screws, it prevents pressurized wash water and monsoon downpours from entering the lamp, while bottom labyrinth drain ports equalize humidity to eliminate lens fogging.

4. Vibration-Dampened Brass Sockets & Solid-State Circuit Engineering

Equipped with heavy-duty phosphor-bronze spring contacts and anti-vibration rubber socket isolators, the electrical core cushions bulbs against severe chassis road shocks. For LED models, a moisture-sealed printed circuit board regulates current to eliminate voltage flicker and premature LED burn-off.

5. License Plate Illumination Window & Safety Reflex Reflector

Incorporating a bottom clear optical lens window, the assembly projects clean white light onto your rear vehicle registration plate, while integrated honeycomb reflex reflectors provide crucial passive red reflection even when your vehicle is parked with the ignition turned off.

6. Direct OEM Plug-and-Play Coupler & Factory Mounting Geometry

Fabricated strictly to OEM factory blueprints, all mounting stud locations, rubber isolation grommet recesses, and multi-pin electrical harness connectors match your vehicle’s factory wiring harness with microscopic precision for hassle-free plug-and-play installation.

7. Workshop Installation Protocols, Seating & Alignment

Professional installation begins by disconnecting the vehicle battery ground. Unclip the rear tail panel, unplug the factory wiring coupler, position the new tail light assembly onto the rear subframe studs, install vibration-damping rubber washers, and hand-tighten locknuts evenlyu2014avoid over-torquing to prevent cracking mounting lugs. Reconnect the coupler and test both running light and brake light circuits.

Technical Specifications

Comprehensive Two-Wheeler Buyer Guide & Diagnostic Checklist

• Cracked or Smashed Lens: A broken lens exposes internal bulbs to rainwater spray, short-circuiting your rear electrical system and blowing the main lighting fuse. Replace the assembly immediately.
• Internal Water Droplets or Heavy Fogging: A compromised perimeter seal allows rainwater into the reflector chamber, corroding bulb contacts and tarnishing the mirror reflector coating.
• Brake Light Stays Off When Levers are Pulled: Corroded internal socket contacts or broken circuit traces prevent power from reaching the high-wattage brake filament, creating severe rear-end collision hazards.
• Loose Lamp Shaking Inside Tail Cowl: Snapped mounting plastic lugs cause the lamp to bounce inside the tail panel, quickly shaking bulb filaments to pieces over road bumps.
