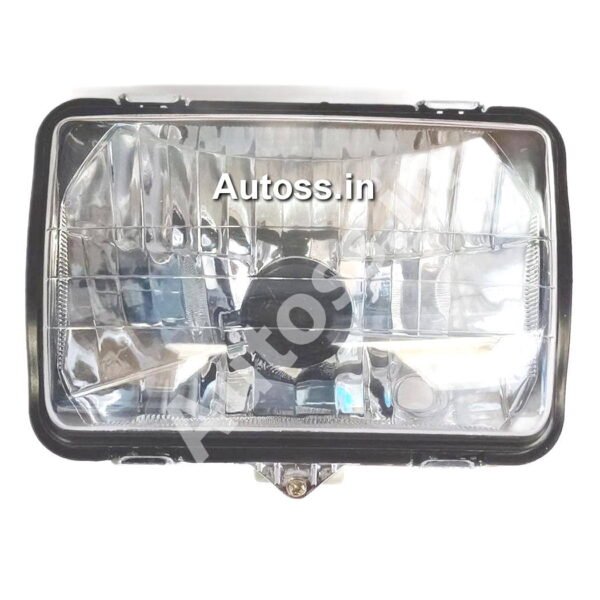

HERO SPLENDOR PLUS HEAD LIGHT

The Hero Splendor Plus Head Light delivers superior nocturnal illumination, precision beam focus, and authentic showroom styling for your two-wheeler. Manufactured to exacting original equipment tolerances, this complete headlamp assembly replaces yellowed, fogged, or cracked factory lighting units, providing riders with maximum forward road visibility, razor-sharp beam cutoff, and rugged weather resistance under demanding nighttime riding conditions.

Workshop Guide & Diagnostic Standards for Hero Splendor Plus Head Light

Upgrading your vehicle with this OEM-spec Bike Headlight restores optical beam throw, prevents blinding glare for oncoming traffic, and ensures dependable electrical reliability across city and highway routes.

1. Optical Polycarbonate Lens Clarity & Scratch-Resistant UV Hard-Coating

Fabricated from shatterproof, optical-grade virgin polycarbonate (PC), this front lens offers unmatched impact strength against airborne gravel and road debris. Treated with an exterior silicone-based UV hard-coating, the lens resists solar yellowing, micro-scratches from road grit, and thermal hazing caused by continuous halogen bulb operation, ensuring crystal-clear lumen transmission.

2. High-Vacuum Metallized Aluminum Parabolic Beam Reflector

The internal reflector dome is formed using automated high-vacuum aluminum vapor deposition protected by a transparent protective lacquer. Its computer-modeled parabolic contours gather light rays from the bulb filament and project an expansive horizontal low-beam spread that illuminates lane shoulders while projecting a piercing, high-intensity focal hotspot on high beam.

3. Vibration-Isolated Fairing Mounting & Pivoting Adjuster Screws

Engineered with factory-positioned mounting lugs and precision fairing cowl attachment tabs, this headlamp assembly installs seamlessly into your bike’s front cowl or triple-clamp fork bracket. High-grade spring-tensioned vertical and horizontal aiming adjuster screws allow mechanics to calibrate optical beam angle precisely according to rear suspension preload and rider weight.

4. IP67 Weatherproof Butyl Perimeter Sealing & Rear Dust Boot

To eliminate frustrating internal condensation and moisture pooling during monsoon riding or pressure washes, the polycarbonate lens is permanently bonded to the rear ABS housing using continuous hot-melt butyl rubber sealant. The bulb socket opening is shielded by a pliable, heat-resistant silicone dust boot that keeps water and dust out while allowing thermal expansion breathing.

5. Ceramic Bulb Socket Terminal Inspection & Voltage Drop Diagnosis

When installing your replacement headlight, workshop technicians should inspect the main wire harness coupler. Ensure the ground terminal wire (Green on Hero/Honda, Black/Yellow on Bajaj, Black/White on TVS/Suzuki) provides solid chassis continuity with zero voltage drop. We recommend utilizing ceramic-insulated 3-pin bulb sockets to eliminate socket melting under high-wattage bulb draw.

6. Vertical & Horizontal Beam Leveling Angle Adjustment

Proper beam alignment is critical for road safety. Position the motorcycle on level ground 5 meters away from a vertical wall with the rider seated. Adjust the rear pivoting aiming screw until the top cutoff line of the low-beam hotspot sits approximately 50 mm below horizontal headlamp center height, maximizing road illumination without blinding oncoming drivers.

7. Lens Surface Maintenance & Acrylic Polishing Protocols

To preserve the exterior optical clarity of your polycarbonate headlight, clean only with automotive car shampoo and soft microfiber towels. Never wipe dry lenses caked with road dust, as abrasive silica particles can scour the UV hard-coat. Quarterly applications of non-abrasive synthetic polymer sealant or spray ceramic wax maintain surface hydrophobicity and repel rain water during night rides.

Technical Specifications

Frequently Asked Questions: Hero Splendor Plus Head Light
