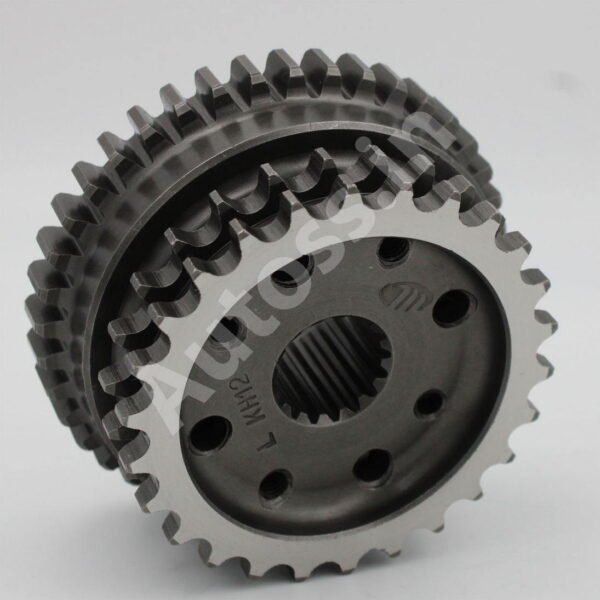

Clutch One Way Assembly ONE WAY BULLET

The Clutch One Way Assembly One Way Bullet delivers instantaneous starter motor torque lockup, smooth overrunning freewheel release, and dependable cold-weather engine cranking for your motorcycle or scooter. Engineered strictly to OEM tolerances from case-hardened alloy steel, this heavy-duty starter clutch one-way assembly replaces slipping, squealing, or jammed factory sprag bearings, restoring instant electric start engagement and protecting your starter motor armature from dangerous engine overspeed backdrive.

Workshop Guide & Diagnostic Standards for Clutch One Way Assembly One Way Bullet

Equipping your vehicle with this genuine-spec Clutch One Way Assembly eliminates the frustrating whirring sound of a spinning starter motor that fails to turn your engine over, protects your flywheel from galling, and ensures reliable first-crank starting in all seasons.

1. High-Tensile Case-Hardened Alloy Steel Construction & Heat Treatment

Fabricated from premium chrome-molybdenum SAE 8620 alloy steel, the outer clutch housing, inner race, and cage components are deeply carburized and precision heat-treated to HRC 60-64. This metallurgical surface hardness withstands thousands of violent torque shocks without surface spalling, indentation, or fatigue micro-fractures.

2. Mathematical Logarithmic Sprag Cam Geometry & Slip-Free Wedging

Each individual sprag element or roller cam is CNC ground with an optimal logarithmic curvature angle. The moment the starter motor spins the drive gear, the cams tilt simultaneously into a positive wedging lock against the outer race, transferring full starter motor cranking torque directly to the crankshaft with zero slipping.

3. High-Resilience Stainless Steel Ribbon / Garter Pre-Load Springs

The sprag assembly is tensioned by a heavy-duty stainless steel continuous garter spring or tempered ribbon spring. This pre-load spring maintains all cams in constant light contact with both raceways, ensuring immediate engagement even under sluggish starter speeds caused by weak battery charge or cold engine oil.

4. Instantaneous Overrunning Freewheel Action & Centrifugal Disengagement

As soon as the engine ignites and crankshaft speed exceeds starter gear RPM, the logarithmic cams automatically roll out of their wedging pocket into frictionless overrunning mode. Centrifugal force gently lifts the cams, eliminating drag, frictional heat, and unwanted rotational resistance on your running engine.

5. CNC Micrometer Tolerance Concentricity & Smooth Bearing Rotation

Both inner mounting splines, dowel holes, and backing flange faces are finished to ISO IT6 micrometer dimensional accuracy. This concentric alignment prevents radial wobble against your magneto flywheel, eliminates high-speed starter clutch rattle, and reduces internal engine vibrations.

6. Direct OEM Bolt-On Alignment & Factory Dimension Guarantee

Engineered to original manufacturer blueprints, all bolt circle diameters, thread pitches, and drive gear clearances match your motorcycle’s factory starter gear and rotor hub with microscopic precision for simple bolt-on installation.

7. Workshop Installation Protocols, Oil Priming & Torque Standards

Professional installation requires thoroughly soaking the new one-way clutch assembly in fresh motorcycle 4T engine oil prior to assembly. Apply blue thread-locking compound to all mounting bolts, torque them strictly in a star pattern to OEM factory torque values, and verify by hand that the assembly locks firmly in one direction and spins completely freely in the opposite direction.

Technical Specifications

Comprehensive Two-Wheeler Buyer Guide & Diagnostic Checklist

• Starter Whirring Without Cranking Engine: If pressing the starter button produces a high-pitched whirring sound like a vacuum cleaner but the engine does not turn over, the sprag cams have rounded off or the spring has stretched, slipping completely.
• Loud Metallic Clunking / Grinding on Startup: Intermittent sprag grip causes violent slipping and re-engaging, sending shockwaves through the starter idle gears that can shear starter gear teeth.
• Starter Motor Drag After Engine Starts: If the one-way clutch fails to release into overrunning mode, the spinning engine drives the starter motor at 10x its rated RPM, quickly burning out the starter armature windings.
• Difficulty Starting Only When Engine is Cold: Thick cold engine oil can prevent worn sprag cams from tilting into lock position. A fresh assembly with a crisp pre-load spring restores instant cold starts.

Frequently Asked Questions: Clutch One Way Assembly One Way Bullet
