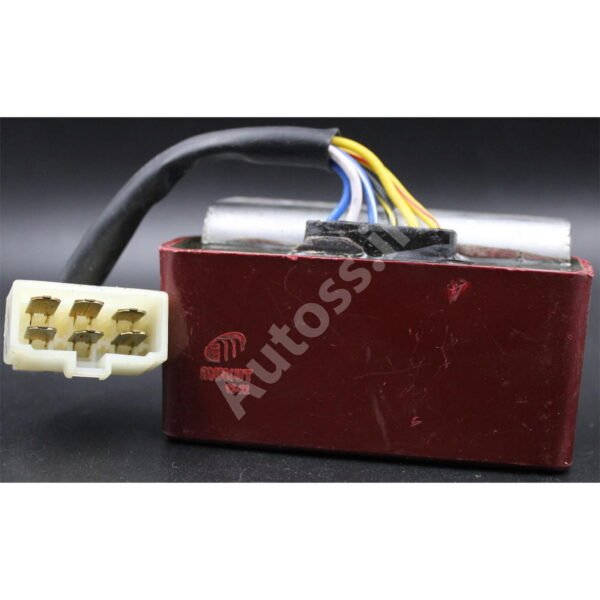

PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier

Original price was: ₹1,658.00.Current price is: ₹1,550.00.

PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier

This model-specific replacement should be compared with the part currently fitted to your motorcycle before ordering. Current price: ₹1,550, including GST.

If you want to buy pulsar 150 180 200 220 old regulator rectifier online, use the complete title above as the fitment reference.

In Stock

Estimated delivery date: November 24, 2026 – November 26, 2026
- +

The Regulator Rectifier Pulser 150180 200220 Old delivers stable battery charging voltage, robust over-voltage protection, and exceptional electrical system reliability for your motorcycle or scooter. Manufactured to stringent OEM engineering standards, this heavy-duty solid-state regulator rectifier (RR unit) replaces burnt, overheating, or shorted original units, eliminating headlight bulb burnouts, battery boiling, and dead battery stranded situations across all riding conditions.

Workshop Guide & Diagnostic Standards for Regulator Rectifier Pulser 150180 200220 Old

Upgrading your vehicle with this factory-calibrated Regulator Rectifier protects your bike’s expensive electronic control unit (ECU), digital speedometer console, and LED lighting from destructive high-voltage alternator spikes.

1. Solid-State Full-Wave Silicon Diode Bridge Rectification

This regulator rectifier utilizes high-current silicon diode elements arranged in a full-wave bridge configuration. It converts alternating current (AC) generated by the magneto stator coil into smooth, direct current (DC) with minimal internal junction voltage drop. This guarantees that your 12V battery receives immediate, high-amperage charging replenishment even during low-speed urban traffic crawls. In addition, precision-matched silicon wafer junctions prevent reverse polarity leakage and voltage imbalance across stator phases, ensuring optimal charging efficiency and protecting the vehicle’s electrical harness under continuous high-load riding conditions.

2. Precision Shunt Zener & Thyristor (SCR) Voltage Regulation

Integrated solid-state thyristor shunt circuits continuously monitor battery terminal voltage. When charging voltage approaches the 14.5 ± 0.3V saturation ceiling, the shunt circuitry redirects excess electrical current harmlessly to ground, preventing battery acid electrolyte boiling, plate sulfation, and headlight bulb filament vaporization.

3. Die-Cast Aluminum Heat Sink Fins & Thermal Dissipation

Housed in an extruded, heavy-ribbed die-cast aluminum alloy heat sink chassis, the unit maximizes convective surface area to ambient airflow. Combined with high-thermal-conductivity internal potting, this rapid heat dissipation eliminates thermal runaway and prevents internal semiconductor breakdown under sustained high-speed highway riding.

4. Waterproof Polyurethane Potting & Vibration Isolation

The internal electronic micro-circuitry is vacuum-encapsulated in heavy-duty black elastomeric polyurethane potting compound. This complete environmental seal achieves an IP67 waterproof rating, protecting sensitive diodes and thyristors from high-pressure monsoon wash water, corrosive road salt spray, and intense engine chassis vibrations.

5. Pinout Terminal Pin Continuity & Wiring Harness Interface

Featuring OEM-matching nylon locking terminal couplers and tin-plated brass terminal pins, this unit plugs directly into your motorcycle’s main wiring harness with zero cutting or splicing. High-retention locking tabs ensure tight terminal pin contact, eliminating high-resistance contact heating and burnt plastic connector plugs.

6. Battery Charging Health & Parasitic Diode Leakage Testing

Workshop technicians must verify reverse diode leakage with a digital multimeter connected in series with the battery negative cable. Reverse leakage current must remain below 1.0 milliamp with the ignition key turned OFF. A higher draw indicates damaged diodes that cause slow overnight battery drainage.

7. High-RPM Voltage Clamping & Stator Coil Phase Balance

After installation, test DC charging voltage at the battery terminals across multiple engine speeds. At idle (1,400 RPM), voltage should read 13.0 to 13.8V; at high cruising speed (5,000+ RPM), voltage must clamp solidly between 14.2V and 14.8V without fluctuating. Inspect stator AC phase-to-phase output voltages (typically 40–60V AC at 4,000 RPM) to ensure the alternator stator coil is balanced. Furthermore, inspect the ground wire ring eyelet connection to the vehicle chassis frame, ensuring bare metal contact without paint, oil, or rust interference to provide an ultra-low impedance shunt discharge pathway for excess alternator energy.

Technical Specifications

Specification ParameterEngineering Standard
Circuit ArchitectureFull-Wave Bridge Rectifier with SCR Shunt Regulator
Regulated DC Output Voltage14.5V ± 0.3V DC Under Dynamic Load
Housing ConstructionExtruded Finned High-Conductivity Aluminum Alloy
Encapsulation StandardIP67 Hermetically Sealed Elastomeric Polyurethane
Coupler InterfaceOEM Direct-Fit Nylon Locking Connector Plug
Application CompatibilityDirect Bolt-On Fitment for PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier

Frequently Asked Questions: Regulator Rectifier Pulser 150180 200220 Old

Does the Regulator Rectifier Pulser 150180 200220 Old come with plug-and-play wiring connectors?

Yes. The regulator rectifier features factory-spec nylon locking couplers and terminal pins designed for direct plug-and-play fitment with your motorcycle’s original wiring harness.

What causes a motorcycle regulator rectifier to overheat and burn out?

Overheating is usually caused by poor electrical ground connections, loose battery terminals, a failing battery with high internal resistance, or a shorted stator coil forcing excessive shunt current.

Will this RR unit stop my headlight bulbs from blowing?

Yes. By strictly regulating output voltage below 14.8V, it prevents destructive high-voltage alternator spikes from reaching your lighting and digital console circuits.

Do you deliver motorcycle regulator rectifiers across India?

Yes. Free shipping across India.

Technical Specifications & Vehicle Fitment

  • Part / OEM Code: AUTOSS-7728
  • Compatible Two-Wheelers: REGULATOR RECTIFIER
  • Brand / Specification: Autoss OEM Replacement
Fitment & Shipping FAQs

Q: Which bike models fit PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier (AUTOSS-7728)?
This PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier (Part/OEM Reference: AUTOSS-7728) is designed for compatible fitment with REGULATOR RECTIFIER. Please verify the mounting points and connector profile in the product photos before ordering.

Q: What is the catalog part number and brand for PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier?
The catalog reference code / MPN is AUTOSS-7728 under Autoss OEM Replacement, supplied by Autoss.in (Elegant Innovations).

Q: What are the shipping timelines across India on Autoss.in?
All spare parts on Autoss.in are carefully packed and shipped pan-India through tracked courier partners including Delhivery, Xpressbees, and iCarry.


Reviews

There are no reviews yet.

Be the first to review “PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier”

Your email address will not be published. Required fields are marked *

At-a-Glance Quick Fitment & Specs

Part Category REGULATOR RECTIFIER
Compatible Bike Model Pulser 150 180 200 220
Fitment Type Direct Replacement
Shipping Pan-India COD Available

Frequently Asked Questions — PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier

Read the full buying guide →

Is the PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier compatible with my older Bajaj motorcycle?

Yes, this PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier is engineered precisely as a direct plug-and-play OE-spec replacement for classic Pulser 150 180 200 220 motorcycles. It delivers accurate AC to DC conversion, matches the stock coupler seamlessly, and guarantees stable charging current without requiring any cutting or splicing of your motorcycle's original wiring harness.

What are the common symptoms indicating my Pulser 150 180 200 220 needs a new REGULATOR RECTIFIER?

Common symptoms indicating your Pulser 150 180 200 220 requires a replacement REGULATOR RECTIFIER include a frequently draining or overcharging battery, flickering headlamps, blown bulbs, or erratic digital meter readings. Upgrading to a fresh unit prevents severe electrical damage and ensures consistent DC power delivery across all RPMs.

What is the price of the PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier and how does it protect the bike?

Available at ₹1,550.00, this PULSER 150 / 180 / 200 / 220 OLD Regulator Rectifier provides heavy-duty overvoltage protection and superior heat dissipation. Built for demanding Indian riding conditions, it stops battery boiling and electrical burnout on your Pulser 150 180 200 220, making it an affordable, factory-tested replacement that restores your motorcycle's electrical charging efficiency.
