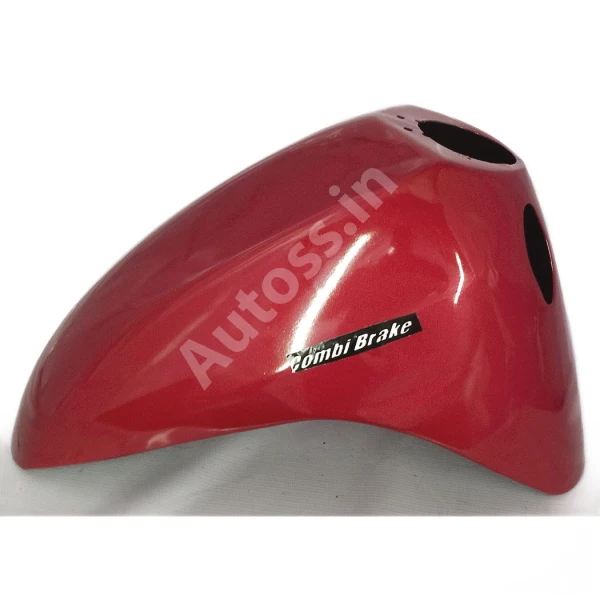

The Honda Activa 3g Scooty Mudguard Red provides high-impact frontal road protection, aerodynamic contouring, and authentic showroom styling for your scooter. Manufactured to meet rigorous OEM engineering standards, this front mudguard shields your scooter’s steering fork tubes, front brake assembly, and lower chassis apron from abrasive road gravel, monsoon water wash, and corrosive mud accumulation.
Workshop Guide & Diagnostic Standards for Honda Activa 3g Scooty Mudguard Red
Replacing an impact-damaged, scratched, or cracked scooter fender with this OEM-spec Scooty Mudguard restores factory wheel arch symmetry while ensuring long-term structural durability under daily commuting conditions.
1. High-Impact Virgin ABS Resin & Deep-Drawn Steel Flange Rigidity
Engineered from premium virgin Acrylonitrile Butadiene Styrene (ABS) polymer resin or deep-drawn automotive sheet steel according to factory specifications, this mudguard resists high-frequency road vibrations, stress fractures, and stone impacts. The reinforced structural mounting bosses distribute mechanical loads evenly across the chassis bracket, preventing fatigue cracking around bolt holes.
2. Multi-Stage Chamber-Baked Polyurethane (PU) Paint & UV Resistance
Finished in factory-matched Red with high-temperature chamber-baked polyurethane (PU) clear varnish, the surface resists ultraviolet fading, chemical detergent staining, and fuel splash blemishes. The deep, high-gloss luster preserves original scooter aesthetics through severe weather, monsoons, and extended outdoor parking.
3. Vibration Damper Bushing Inspection & Stress-Relief Torquing
During workshop installation, technicians must always inspect the front fork mounting brackets and rubber isolation grommets. Never torque mounting bolts directly against bare plastic or un-cushioned steel brackets without rubber washers. Tighten fasteners evenly to factory specifications (8–10 Nm for ABS panels; 12–14 Nm for steel mudguards) to maintain flexibility without inducing localized material tension.
4. Radial Tire Clearance & Front Fork Steering Crown Alignment
Before final road testing, verify uniform perimeter clearance between the tire tread and inner mudguard arch. Ensure a minimum radial gap of 20 mm across the entire circumference. Turn the scooter handlebars lock-to-lock in both directions to verify complete clearance against front suspension trailing links, telescopic fork dust boots, and lower fairing panels.
5. Anti-Rust Internal Underbody Protective Coating
The inner underbody arch is specially treated with an abrasion-resistant, anti-corrosion barrier designed to deflect continuous road grit hurled by the spinning front tire. This protective inner coating prevents stone pitting and rust formation on steel models, while repelling moisture and oil film accumulation on ABS fenders.
6. Front Wheel Mud Flap & Water Splash Apron Geometry
The trailing edge of this front mudguard is hydrodynamically contoured to direct water spray downward and away from the rider footboard and electrical wire harness conduits. This engineered curvature reduces splash-back during wet highway cruising, keeping the engine cooling fan duct and front brake mechanism clean and dry.
7. Periodic Maintenance & Surface Paint Preservation
To preserve the showroom-grade polyurethane finish of your scooter mudguard, clean only with mild automotive shampoo and clean microfiber cloths. Avoid harsh acid-based wheel cleaners or abrasive wire brushes that can cause micro-swirls on high-gloss clear varnish. Applying a protective synthetic polymer sealant or carnauba wax coating every three months shields the paintwork against airborne industrial fallout, road tar accumulation, and intense ultraviolet solar oxidation.
Technical Specifications
| Specification Parameter | Engineering Standard |
|---|---|
| Material Architecture | Virgin High-Impact ABS Polymer Resin / Stamped Sheet Steel |
| Paint System | Electrostatic Chamber-Baked High-Gloss Polyurethane (PU) |
| Color Variant | Factory OEM Matched (Red) |
| Mounting Provisions | Precision OEM Factory Bracket Interlock Holes |
| Underbody Protection | High-Adhesion Stone-Chip & Anti-Corrosion Barrier |
| Application Compatibility | Direct Bolt-On Fitment for Honda Activa |
Frequently Asked Questions: Honda Activa 3g Scooty Mudguard Red
Is this Honda Activa 3g Scooty Mudguard Red ready to install out of the box?
Yes. It arrives fully factory-finished in authentic Red with high-gloss PU clear coating and precision mounting holes for direct bolt-on installation on your scooter.
Does it match my scooter’s original factory color?
Yes. The paint is computer-matched to OEM factory color standards to ensure an exact visual blend with adjacent side panels and front apron fairings.
Can I replace this mudguard myself at home?
Yes, with basic workshop hand tools. We recommend retaining original rubber mounting grommets and checking tire clearance after tightening mounting bolts.
Do you deliver scooty mudguards across India?
Yes. Free shipping across India.
Technical Specifications & Vehicle Fitment
- Part / OEM Code: 6fdf00b51ee7-1
- Compatible Two-Wheelers: Honda Activa 3G
- Brand / Specification: Autoss OEM Replacement
Fitment & Shipping FAQs
Q: Which bike models fit HONDA ACTIVA 3G SCOOTY MUDGUARD RED (6fdf00b51ee7-1)?
This HONDA ACTIVA 3G SCOOTY MUDGUARD RED (Part/OEM Reference: 6fdf00b51ee7-1) is designed for compatible fitment with Honda Activa 3G. Please verify the mounting points and connector profile in the product photos before ordering.
Q: What is the catalog part number and brand for HONDA ACTIVA 3G SCOOTY MUDGUARD RED?
The catalog reference code / MPN is 6fdf00b51ee7-1 under Autoss OEM Replacement, supplied by Autoss.in (Elegant Innovations).
Q: What are the shipping timelines across India on Autoss.in?
All spare parts on Autoss.in are carefully packed and shipped pan-India through tracked courier partners including Delhivery, Xpressbees, and iCarry.
