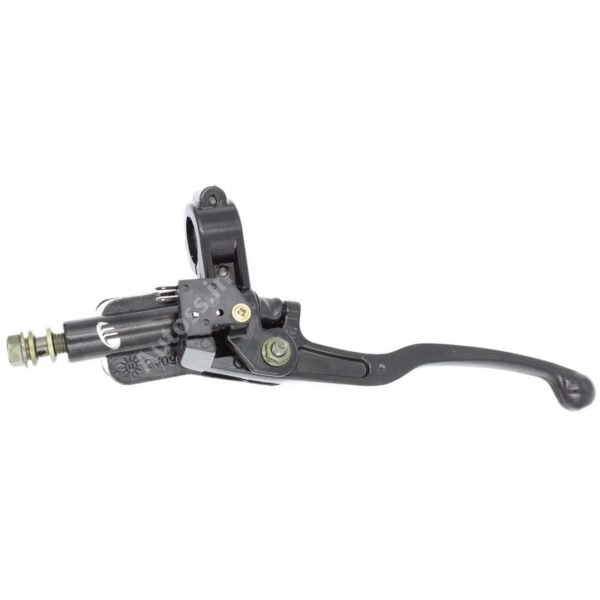

Front Disc Brake Master Cylinder Assembly for BAJAJ PULSER-(F)-(4)

The Front Disc Brake Master Cylinder Assembly For Bajaj Pulser F 4 delivers formidable hydraulic stopping power, razor-sharp lever modulation, and reliable fade resistance for your motorcycle. Built to exacting OEM engineering tolerances, this complete front disc brake system arrives 100% pre-bled with master cylinder, high-pressure reinforced hose, twin-piston caliper, and pre-installed friction pads, eliminating spongy brake levers, fluid leaks, and sluggish stopping response.

Workshop Guide & Diagnostic Standards for Front Disc Brake Master Cylinder Assembly For Bajaj Pulser F 4

Upgrading your vehicle with this factory-matched Front Disc Brake Assembly transforms front-end braking confidence, eliminates brake shudder, and ensures rapid deceleration under emergency braking conditions.

1. Complete Hydraulic Circuit Integration & Pre-Bled Factory Calibration

This front disc brake kit arrives completely assembled, hermetically sealed, and factory vacuum-purged with high-boiling DOT 4 glycol-ether brake fluid. This eliminates the risk of introducing microscopic air pockets into the hydraulic line, allowing mechanics to perform instant, plug-and-play installation without messy bleeding bottles or fluid spillage onto painted motorcycle surfaces.

2. Master Cylinder Lever Modulation & Integrated Brake Switch

The high-pressure die-cast aluminum master cylinder incorporates a precision-bored cylinder sleeve and an ergonomic forged alloy hand lever. An integrated sealed microswitch triggers the rear brake lamp instantly upon initial lever take-up, providing immediate visual warning to trailing motorists while offering progressive hydraulic lever feedback.

3. Caliper Sliding Pin Float & Twin-Piston Clamping Dynamics

The hydraulic caliper utilizes twin hard-chromed micro-polished pistons operating within an anodized high-tensile alloy body. Precision-machined stainless steel guide slider pins shielded by flexible neoprene accordion dust boots allow frictionless floating movement, ensuring balanced pad pressure on both rotor faces and preventing single-sided pad taper wear.

4. Sintered Pad Bedding & Anti-Rattle Retention Springs

Pre-fitted with factory-matched semi-metallic sintered brake pads backed by stainless steel anti-rattle spring shims, the caliper delivers immediate rotor friction bite with zero acoustic squeal. During the first 50 kilometers of road riding, execute progressive stops from moderate speeds to establish an even transfer film across the rotor face.

5. High-Pressure Reinforced Hydraulic Hose & Banjo Union Crushing

The included hydraulic hose features multi-layer high-density woven reinforcement encased in a tough, abrasion-resistant outer vinyl casing. This eliminates volumetric line swelling under extreme lever pressure, directing 100% of hand force into caliper piston clamping. Solid brass banjo unions with annealed copper sealing crush washers ensure permanent, drip-free fluid integrity.

6. DOT 3 & DOT 4 Fluid Compatibility & Sealed Reservoir

The master cylinder fluid reservoir features an airtight EPDM rubber bellow diaphragm and a clear sight glass inspection window that permits rapid fluid level and clarity assessment. The internal rubber compounds resist degradation from high-temperature glycol fluids, withstanding operational temperatures exceeding 230°C without fluid vaporization.

7. Handlebar Mounting Clamp & Fork Boss Centering Alignment

Secure the master cylinder clamp to standard 22 mm handlebars, torquing mounting bolts evenly to 9–11 Nm. When attaching the caliper bracket to the front fork leg mounting bosses, torque M8 bolts to 28–32 Nm. Verify that the caliper friction slot is centered perfectly over the brake rotor disc, allowing the front wheel to spin freely without parasitic drag.

Technical Specifications

Frequently Asked Questions: Front Disc Brake Master Cylinder Assembly For Bajaj Pulser F 4
