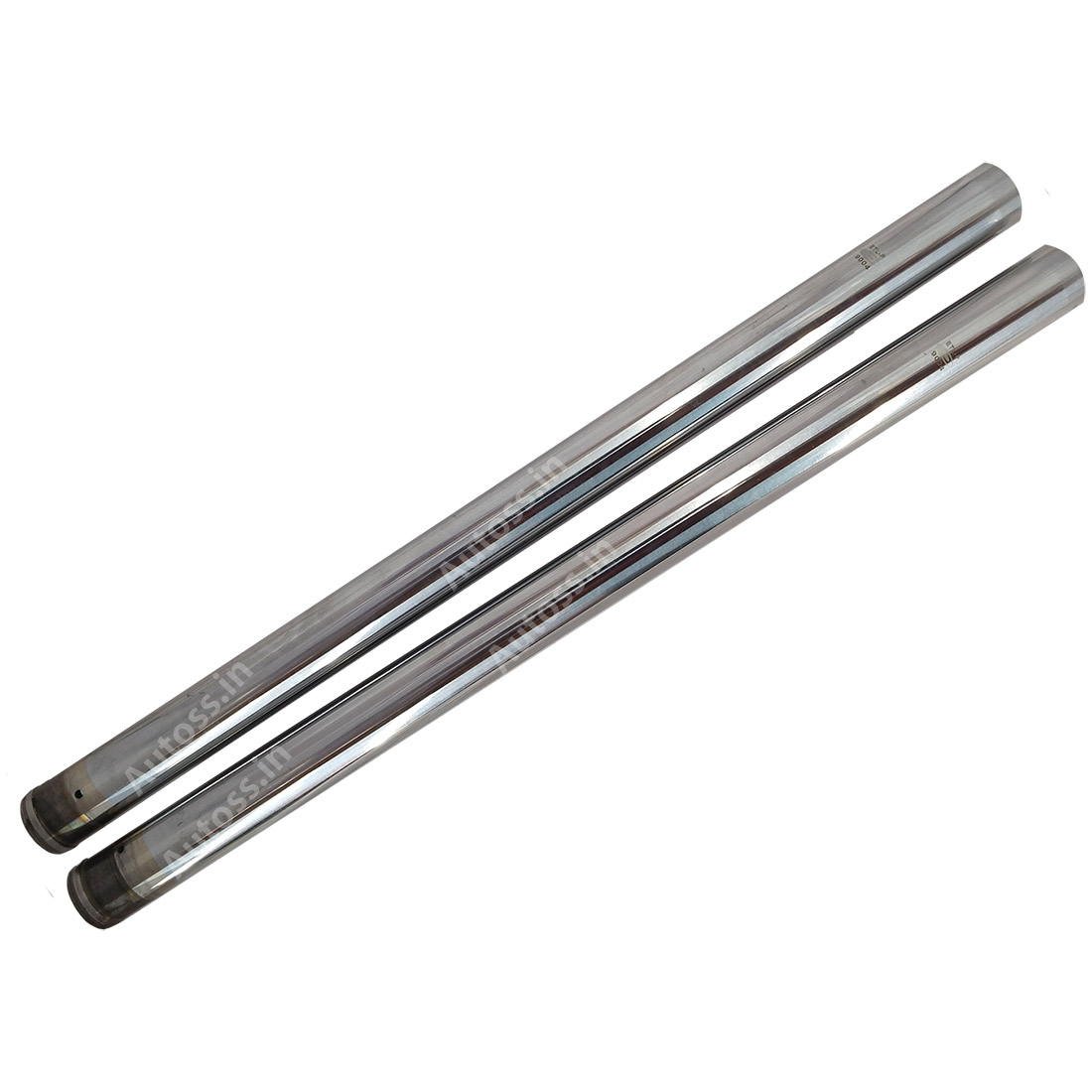

The Fork Pipe Bajaj Discover 150 100 Dtsi delivers superior front-end suspension compliance, precise steering geometry, and exceptional durability across all riding terrains. Engineered to exacting OEM specifications, this heavy-duty motorcycle and scooter front fork inner pipe replaces pitted, scratched, or crash-bent original fork tubes, eliminating hydraulic fork oil leaks, steering vibration, and harsh bottoming out over potholes.
Workshop Guide & Diagnostic Standards for Fork Pipe Bajaj Discover 150 100 Dtsi
Upgrading your two-wheeler with this precision-ground Fork Pipe restores factory telescopic damping performance, prevents repetitive fork seal destruction, and guarantees stable, straight-line tracking under heavy braking.
1. Precision Hard-Chrome Electroplating & Micro-Crack Oil Retention
This fork inner pipe features a multi-layer industrial hard-chrome electroplated finish measuring 20 to 30 microns in thickness with a surface hardness exceeding 60 HRC. The microscopic surface structure retains a microscopic lubricating oil film that allows the fork oil seal lips to glide smoothly without dry friction, preventing oil weepage while resisting airborne road grit and flying stone abrasions.
2. Cold-Drawn Seamless High-Yield Carbon Steel Tubing
Manufactured from cold-drawn seamless carbon structural steel tubing, this fork pipe exhibits uniform wall thickness and high tensile yield strength. The structural integrity prevents tubular flexing during aggressive cornering and resists permanent bending deflection during sudden front-wheel impact against deep road ruts and speed breakers.
3. Internal Bore Honing & Damper Rod Piston Ring Sealing
The inner bore of the fork tube is diamond-honed to a mirror surface finish. This allows the internal damping rod piston ring and rebound bottoming spring to slide with zero binding, ensuring laminar hydraulic fluid flow through damping metering orifices without oil cavitation or aeration during rapid suspension cycling.
4. Fork Oil Seal Contact Lip Sealing & Stiction-Free Glide
Centerless precision grinding achieves an ultra-fine Ra ≤ 0.05 μm surface roughness across the entire stroke area. This ultra-smooth finish eliminates seal lip stiction (static friction), providing supple initial suspension travel that absorbs minor road ripples before they transfer into the rider handlebars.
5. Triple-Clamp Yoke Pinch-Bolt Clamping & Torque Calibration
When securing the fork tube within the bottom triple-tree yoke and upper handlebar clamp, always use a calibrated torque wrench. Tighten clamp pinch bolts evenly to factory torque (typically 18 to 22 Nm). Over-torquing pinches and distorts the circular tube profile into an oval shape, causing the internal fork spring and damper rod to bind during travel.
6. Fork Oil Viscosity Grade (10W/15W/20W) & Volume Tuning
Always fill each fork leg with fresh, premium-grade motorcycle fork suspension fluid according to the exact volume specified by the vehicle service manual. For everyday urban commuting, 10W viscosity provides plush road compliance; for spirited touring or heavier riders, 15W or 20W oil increases compression damping resistance against excessive brake dive.
7. Straightness Runout Dial Indicator Inspection & Replacement Thresholds
Before installing any replacement fork pipe, workshop mechanics must place the tube on precision V-blocks and rotate it against a dial test indicator. Total indicated runout (TIR) must not exceed 0.05 mm across the entire length. Straightening a bent fork pipe compromises metallurgical grain structure; always replace bent tubes with a new factory-spec unit.
Technical Specifications
| Specification Parameter | Engineering Standard |
|---|---|
| Tube Construction | Cold-Drawn Seamless Carbon Structural Steel |
| Surface Plating | Multi-Layer Micro-Porous Hard Chrome (58–62 HRC) |
| Surface Roughness | Mirror Ground Ra ≤ 0.05 μm Micro-Finish |
| Straightness Tolerance | Total Indicated Runout (TIR) ≤ 0.05 mm |
| Internal Finish | Precision Honed Hydraulic Damper Bore |
| Application Compatibility | Direct Bolt-On Fitment for FORK PIPE BAJAJ DISCOVER 150 / 100 / DTSI |
Frequently Asked Questions: Fork Pipe Bajaj Discover 150 100 Dtsi
Does the Fork Pipe Bajaj Discover 150 100 Dtsi come ready to install?
Yes. The fork pipe is precision manufactured to exact OEM dimensions with pre-cut internal threads and circlip grooves ready for direct fitment with your original bottom slider and damper rod.
Should I replace fork oil seals when installing this pipe?
Yes. Always install brand-new OEM fork oil seals and rubber dust seals along with fresh fork oil to ensure a 100% leak-proof installation and maximum seal lifespan.
Can a bent fork pipe be safely straightened instead of replaced?
No. Hydraulic pressing or bending creates microscopic cracks in the hard chrome and weakens the steel tube, making it prone to sudden catastrophic snapping under heavy braking.
Do you deliver motorcycle fork pipes across India?
Yes. Free shipping across India.
Technical Specifications & Vehicle Fitment
- Part / OEM Code: e18bb4a72c34
- Compatible Two-Wheelers: Bajaj Discover
- Brand / Specification: Autoss OEM Replacement
Fitment & Shipping FAQs
Q: Which bike models fit FORK PIPE BAJAJ DISCOVER 150 / 100 / DTSI (e18bb4a72c34)?
This FORK PIPE BAJAJ DISCOVER 150 / 100 / DTSI (Part/OEM Reference: e18bb4a72c34) is designed for compatible fitment with Bajaj Discover. Please verify the mounting points and connector profile in the product photos before ordering.
Q: What is the catalog part number and brand for FORK PIPE BAJAJ DISCOVER 150 / 100 / DTSI?
The catalog reference code / MPN is e18bb4a72c34 under Autoss OEM Replacement, supplied by Autoss.in (Elegant Innovations).
Q: What are the shipping timelines across India on Autoss.in?
All spare parts on Autoss.in are carefully packed and shipped pan-India through tracked courier partners including Delhivery, Xpressbees, and iCarry.
