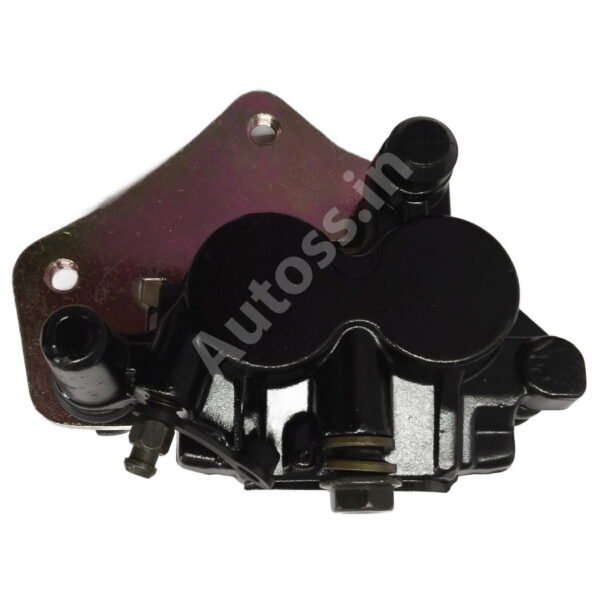

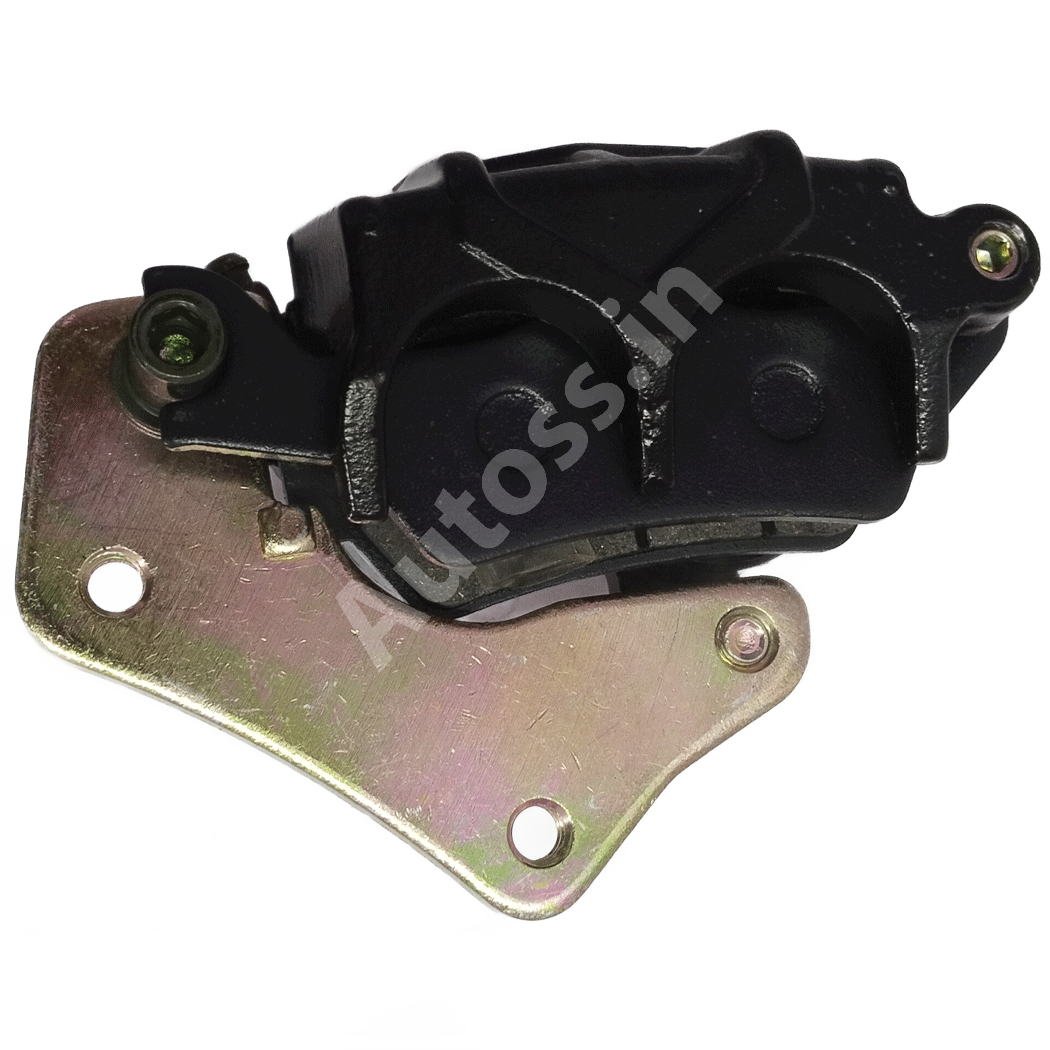

The Brake Caliper Tvs Gixxer Front delivers uncompromising hydraulic braking power, precise lever modulation, and exceptional fade resistance for your motorcycle. Built to stringent OEM engineering tolerances, this heavy-duty hydraulic disc brake caliper assembly replaces sticking, leaking, or piston-seized original calipers, restoring confident, high-stopping deceleration and consistent lever firmness in all weather and riding conditions.
Workshop Guide & Diagnostic Standards for Brake Caliper Tvs Gixxer Front
Upgrading your vehicle with this precision-cast Brake Caliper eliminates brake dragging, prevents uneven rotor scoring, and guarantees rapid hydraulic pressure dissipation for maximum riding safety.
1. Hydraulic Pressure Multiplication & Dual-Piston Clamping Dynamics
This brake caliper converts hydraulic fluid line pressure generated at the hand brake master cylinder into mechanical clamping force. Featuring precision-ground twin pistons with hard-chrome micro-finish coatings, the caliper exerts balanced, distributed pressure across both brake pad friction surfaces. This equalized clamping dynamic prevents localized rotor hot-spotting, eliminating disc warping and pulsating lever vibrations.
2. Square-Section EPDM Piston Seal Elastic Retraction
Engineered with high-resilience ethylene-propylene-diene-monomer (EPDM) square-section hydraulic piston rings, these seals deform under hydraulic pressure and elastically rebound by 0.15 mm when the brake lever is released. This microscopic retraction creates an essential running air gap between the friction pads and brake rotor, preventing parasitic brake drag, pad glazing, and wheel binding.
3. Stainless Steel Sliding Guide Pin Lubrication & Carrier Alignment
The floating caliper carrier rides on precision-machined stainless steel slider pins shielded by flexible neoprene accordion dust boots. Workshop technicians must thoroughly clean guide pins and apply a thin film of high-temperature pure synthetic silicone brake grease during installation. Clean, lubricated slider pins guarantee smooth axial floating movement, preventing single-side pad taper wear.
4. Bleeding Protocol: Banjo Bolt Gasket Crushing & Micro-Bubble Purging
Always install fresh annealed copper crush washers on both sides of the hydraulic brake hose banjo bolt fitting. Torque the M10 banjo bolt to 22–25 Nm. Connect a clear vinyl bleeder hose to the integrated bleeder screw nipple and flush fresh brake fluid until all entrained air bubbles are completely expelled. A spongy brake lever indicates trapped air inside the caliper fluid gallery.
5. Sintered Ceramic Brake Pad Bedding-In & Anti-Rattle Clip Alignment
This caliper assembly includes pre-installed, factory-matched high-friction brake pads backed by stainless steel anti-rattle spring clips. During the initial 50 kilometers of road operation, perform gradual, progressive braking stops from 50 km/h to 10 km/h to bed the pad friction material evenly against the rotor face without glazing.
6. Rotor Runout & Caliper Mounting Carrier Offset Inspection
Before torquing mounting bolts to fork leg bosses (28–32 Nm), inspect the disc brake rotor with a dial indicator. Lateral runout must not exceed 0.10 mm. Ensure the caliper body sits perfectly centered over the rotor disc with equal clearance on both sides of the friction slot, ensuring smooth wheel spin with zero mechanical interference.
7. DOT 3 & DOT 4 Glycol-Ether Fluid Boiling Point Standards
The internal high-pressure EPDM hydraulic seals and dust boots are chemically formulated to withstand modern glycol-ether based DOT 3 and DOT 4 hydraulic brake fluids with boiling points exceeding 230u00b0C. Never introduce petroleum-based mineral oils or contaminated fluid into the hydraulic circuit, as petroleum destroys synthetic rubber seals within hours.
Technical Specifications
| Specification Parameter | Engineering Standard |
|---|---|
| Caliper Housing Material | High-Tensile Die-Cast Aluminum Alloy (Hard-Anodized) |
| Piston Architecture | Twin Precision-Ground Hard-Chrome Plated Pistons |
| Hydraulic Seal Ring | High-Resilience Square-Profile EPDM Polymer |
| Sliding Guide Mechanism | Stainless Steel Pins with Weatherproof Neoprene Boots |
| Friction Material | Pre-Installed Semi-Metallic / Sintered Brake Pads |
| Application Compatibility | Direct Bolt-On Fitment for TVS Bike |
Frequently Asked Questions: Brake Caliper Tvs Gixxer Front
Does the Brake Caliper Tvs Gixxer Front come with brake pads pre-installed?
Yes. The assembly arrives complete with pre-installed factory-spec brake pads, anti-rattle spring clips, bleeder screw with rubber dust cap, and mounting carrier ready for installation.
Which brake fluid should I use with this caliper?
Use fresh, sealed DOT 3 or DOT 4 glycol-ether based hydraulic brake fluid according to your motorcycle manufacturer’s specifications.
How do I prevent the brake from sticking or dragging?
Ensure the sliding guide pins are lubricated with silicone brake grease, bleed all air bubbles from the line, and verify the brake rotor runs straight without lateral runout.
Do you deliver brake calipers across India?
Yes. Free shipping across India.
Technical Specifications & Vehicle Fitment
- Part / OEM Code: AUTOSS-11436
- Compatible Two-Wheelers: BRAKE CALIPER, TVS SPARE PARTS
- Brand / Specification: Autoss OEM Replacement
Fitment & Shipping FAQs
Q: Which bike models fit BRAKE CALIPER TVS GIXXER FRONT (AUTOSS-11436)?
This BRAKE CALIPER TVS GIXXER FRONT (Part/OEM Reference: AUTOSS-11436) is designed for compatible fitment with BRAKE CALIPER, TVS SPARE PARTS. Please verify the mounting points and connector profile in the product photos before ordering.
Q: What is the catalog part number and brand for BRAKE CALIPER TVS GIXXER FRONT?
The catalog reference code / MPN is AUTOSS-11436 under Autoss OEM Replacement, supplied by Autoss.in (Elegant Innovations).
Q: What are the shipping timelines across India on Autoss.in?
All spare parts on Autoss.in are carefully packed and shipped pan-India through tracked courier partners including Delhivery, Xpressbees, and iCarry.
