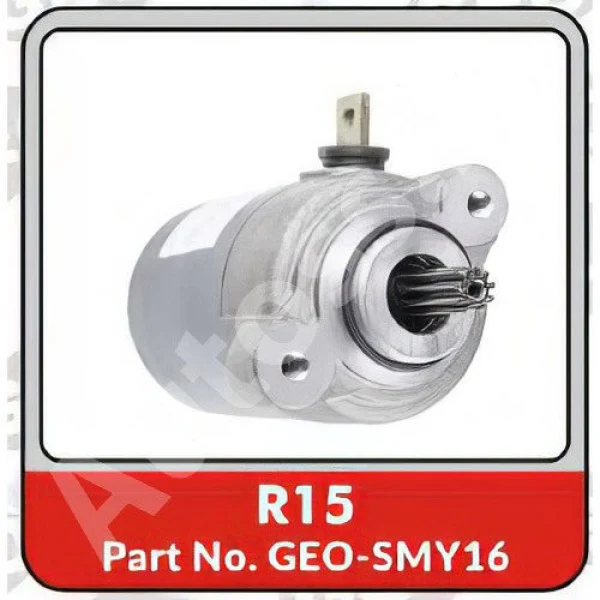

The Yamaha R15 Self Motor delivers instant cranking power, robust electrical efficiency, and dependable engine startup in all riding environments. Precision engineered to stringent OEM standards, this heavy-duty motorcycle and scooter starter motor assembly replaces weak, noisy, or seized factory starters, restoring swift, effortless one-touch electric starting even in freezing weather and under high engine compression.
Workshop Guide & Diagnostic Standards for Yamaha R15 Self Motor
Upgrading your machine with this factory-tested Self Starter Motor ensures reliable engine ignition, eliminates starter solenoid clicking, and protects the battery and wiring harness from excessive electrical current drain.
1. High-Torque 100% Pure Oxygen-Free Copper Armature Windings
This starter motor incorporates high-conductivity oxygen-free electrolytic copper wire machine-wound onto a high-silicon laminated armature core. Vacuum-impregnated with class-H thermosetting insulating varnish, the armature withstands extreme thermal expansion and electrical surges during high-amperage initial cranking cycles without shorting or melting. In addition, the balanced dynamic rotor geometry guarantees smooth rotary acceleration, eliminating harmonic vibrations and ensuring that maximum mechanical torque is delivered to the flywheel gear train with minimal battery voltage sag.
2. Permanent Magnet Stator Field & Neodymium Flux Density
Equipped with high-remanence permanent magnets firmly bonded into the steel outer stator shell, the motor creates a powerful, concentrated stationary magnetic field. This high magnetic flux density delivers instantaneous breakaway torque at zero RPM, spinning heavy motorcycle flywheels past top dead center (TDC) compression with minimal battery amp consumption.
3. High-Conductivity Copper-Graphite Carbon Brushes & Constant-Tension Springs
The internal brush plate features specialized copper-graphite composite carbon brushes that ensure minimal contact resistance and high current transfer capability. Tempered phosphor bronze torsion springs maintain steady brush pressure against the commutator segments, eliminating brush bounce, arcing, and commutator bar pitting across thousands of engine starts.
4. Precision Commutator Mica Undercutting & Diamond Turning
The copper segment commutator is diamond-turned to within 0.005 mm total indicator reading (TIR) for absolute concentricity. Precision mica insulation undercut slots between bars prevent conductive carbon dust bridging, ensuring smooth, vibration-free brush sweep and eliminating intermittent starter cutouts.
5. Starter Clutch Bendix Drive & Splined Shaft Engagement Dynamics
Featuring a case-hardened alloy steel splined output shaft, this starter motor interfaces seamlessly with your two-wheeler’s starter idle gear train or overrunning sprag clutch. Precision gear tooth geometry ensures instant, quiet mesh without gear grinding, while heat-treated splines withstand severe rotational shock loading during engine kickbacks.
6. Double-Lip Nitrile Oil Seals & Sintered Bronze Bushing Alignment
The drive end bell housing is fitted with a durable fluoroelastomer (FKM) double-lip oil seal and high-temperature O-ring that prevent hot crankcase engine oil and road water spray from breaching the dry motor casing. Self-lubricating sintered bronze sleeve bushings ensure frictionless shaft support and precise armature centering.
7. Starter Solenoid Relay Voltage Drop & Ground Cable Testing
Workshop technicians must perform a circuit voltage drop test across the starter relay terminals and ground return paths before concluding installation. Voltage drop must not exceed 0.4 volts under load. Ensure battery terminal clamps are tightly secured and free of white lead-sulfate corrosion to guarantee full 12-volt battery power reaches the motor terminal. Furthermore, verify that the starter solenoid switch contacts engage firmly without chatter or high-resistance pitting, ensuring instantaneous current transfer during cold morning ignition cycles.
Technical Specifications
| Specification Parameter | Engineering Standard |
|---|---|
| Motor Architecture | Permanent Magnet High-Torque DC Starter Motor |
| Operating Voltage | 12V DC Negative Ground System |
| Armature Conductor | 100% Pure Electrolytic Oxygen-Free Copper |
| Brush Composition | High-Conductivity Copper-Graphite with Bronze Springs |
| Shaft / Pinion Design | Case-Hardened Alloy Steel Splined Output Drive |
| Application Compatibility | Direct Bolt-On Fitment for YAMAHA R15 SELF MOTOR |
Frequently Asked Questions: Yamaha R15 Self Motor
Is the Yamaha R15 Self Motor ready for direct plug-and-play installation?
Yes. The starter motor arrives fully assembled with pre-installed mounting O-rings, output drive shaft, and power connection terminal ready for direct bolt-on installation.
What causes a motorcycle starter motor to click without cranking?
Clicking is typically caused by a weak or discharged 12V battery, corroded battery terminal cables, a faulty starter solenoid relay, or severely worn starter carbon brushes.
Does this starter motor draw excessive battery power during cold weather?
No. Thanks to pure copper armature windings and high-remanence permanent magnets, it generates maximum cranking torque with minimal electrical amp draw.
Do you deliver motorcycle starter motors across India?
Yes. Free shipping across India.
Technical Specifications & Vehicle Fitment
- Part / OEM Code: db71b8a06353-1
- Compatible Two-Wheelers: Yamaha R15
- Brand / Specification: Autoss OEM Replacement
Fitment & Shipping FAQs
Q: Which bike models fit YAMAHA R15 SELF MOTOR (db71b8a06353-1)?
This YAMAHA R15 SELF MOTOR (Part/OEM Reference: db71b8a06353-1) is designed for compatible fitment with Yamaha R15. Please verify the mounting points and connector profile in the product photos before ordering.
Q: What is the catalog part number and brand for YAMAHA R15 SELF MOTOR?
The catalog reference code / MPN is db71b8a06353-1 under Autoss OEM Replacement, supplied by Autoss.in (Elegant Innovations).
Q: What are the shipping timelines across India on Autoss.in?
All spare parts on Autoss.in are carefully packed and shipped pan-India through tracked courier partners including Delhivery, Xpressbees, and iCarry.
