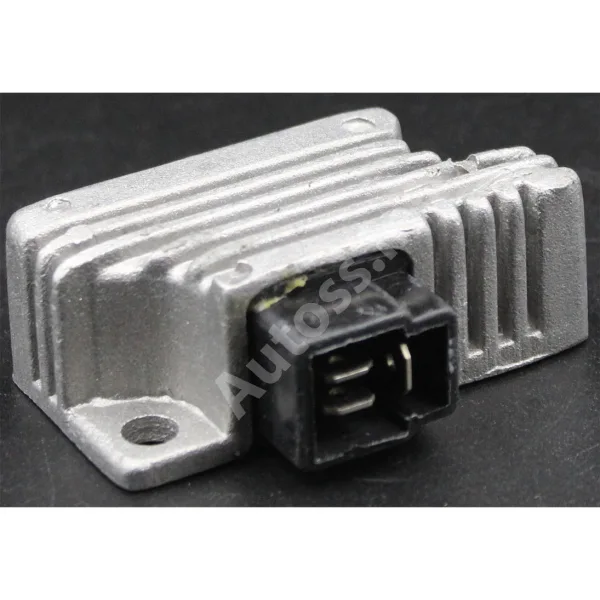

The Regulator Rectifier Rax 100 delivers stable battery charging voltage, robust over-voltage protection, and exceptional electrical system reliability for your motorcycle or scooter. Manufactured to stringent OEM engineering standards, this heavy-duty solid-state regulator rectifier (RR unit) replaces burnt, overheating, or shorted original units, eliminating headlight bulb burnouts, battery boiling, and dead battery stranded situations across all riding conditions.
Workshop Guide & Diagnostic Standards for Regulator Rectifier Rax 100
Upgrading your vehicle with this factory-calibrated Regulator Rectifier protects your bike’s expensive electronic control unit (ECU), digital speedometer console, and LED lighting from destructive high-voltage alternator spikes.
1. Solid-State Full-Wave Silicon Diode Bridge Rectification
This regulator rectifier utilizes high-current silicon diode elements arranged in a full-wave bridge configuration. It converts alternating current (AC) generated by the magneto stator coil into smooth, direct current (DC) with minimal internal junction voltage drop. This guarantees that your 12V battery receives immediate, high-amperage charging replenishment even during low-speed urban traffic crawls. In addition, precision-matched silicon wafer junctions prevent reverse polarity leakage and voltage imbalance across stator phases, ensuring optimal charging efficiency and protecting the vehicle’s electrical harness under continuous high-load riding conditions.
2. Precision Shunt Zener & Thyristor (SCR) Voltage Regulation
Integrated solid-state thyristor shunt circuits continuously monitor battery terminal voltage. When charging voltage approaches the 14.5 ± 0.3V saturation ceiling, the shunt circuitry redirects excess electrical current harmlessly to ground, preventing battery acid electrolyte boiling, plate sulfation, and headlight bulb filament vaporization.
3. Die-Cast Aluminum Heat Sink Fins & Thermal Dissipation
Housed in an extruded, heavy-ribbed die-cast aluminum alloy heat sink chassis, the unit maximizes convective surface area to ambient airflow. Combined with high-thermal-conductivity internal potting, this rapid heat dissipation eliminates thermal runaway and prevents internal semiconductor breakdown under sustained high-speed highway riding.
4. Waterproof Polyurethane Potting & Vibration Isolation
The internal electronic micro-circuitry is vacuum-encapsulated in heavy-duty black elastomeric polyurethane potting compound. This complete environmental seal achieves an IP67 waterproof rating, protecting sensitive diodes and thyristors from high-pressure monsoon wash water, corrosive road salt spray, and intense engine chassis vibrations.
5. Pinout Terminal Pin Continuity & Wiring Harness Interface
Featuring OEM-matching nylon locking terminal couplers and tin-plated brass terminal pins, this unit plugs directly into your motorcycle’s main wiring harness with zero cutting or splicing. High-retention locking tabs ensure tight terminal pin contact, eliminating high-resistance contact heating and burnt plastic connector plugs.
6. Battery Charging Health & Parasitic Diode Leakage Testing
Workshop technicians must verify reverse diode leakage with a digital multimeter connected in series with the battery negative cable. Reverse leakage current must remain below 1.0 milliamp with the ignition key turned OFF. A higher draw indicates damaged diodes that cause slow overnight battery drainage.
7. High-RPM Voltage Clamping & Stator Coil Phase Balance
After installation, test DC charging voltage at the battery terminals across multiple engine speeds. At idle (1,400 RPM), voltage should read 13.0 to 13.8V; at high cruising speed (5,000+ RPM), voltage must clamp solidly between 14.2V and 14.8V without fluctuating. Inspect stator AC phase-to-phase output voltages (typically 40–60V AC at 4,000 RPM) to ensure the alternator stator coil is balanced. Furthermore, inspect the ground wire ring eyelet connection to the vehicle chassis frame, ensuring bare metal contact without paint, oil, or rust interference to provide an ultra-low impedance shunt discharge pathway for excess alternator energy.
Technical Specifications
| Specification Parameter | Engineering Standard |
|---|---|
| Circuit Architecture | Full-Wave Bridge Rectifier with SCR Shunt Regulator |
| Regulated DC Output Voltage | 14.5V ± 0.3V DC Under Dynamic Load |
| Housing Construction | Extruded Finned High-Conductivity Aluminum Alloy |
| Encapsulation Standard | IP67 Hermetically Sealed Elastomeric Polyurethane |
| Coupler Interface | OEM Direct-Fit Nylon Locking Connector Plug |
| Application Compatibility | Direct Bolt-On Fitment for RAX 100 Regulator Rectifier |
Frequently Asked Questions: Regulator Rectifier Rax 100
Does the Regulator Rectifier Rax 100 come with plug-and-play wiring connectors?
Yes. The regulator rectifier features factory-spec nylon locking couplers and terminal pins designed for direct plug-and-play fitment with your motorcycle’s original wiring harness.
What causes a motorcycle regulator rectifier to overheat and burn out?
Overheating is usually caused by poor electrical ground connections, loose battery terminals, a failing battery with high internal resistance, or a shorted stator coil forcing excessive shunt current.
Will this RR unit stop my headlight bulbs from blowing?
Yes. By strictly regulating output voltage below 14.8V, it prevents destructive high-voltage alternator spikes from reaching your lighting and digital console circuits.
Do you deliver motorcycle regulator rectifiers across India?
Yes. Free shipping across India.
Technical Specifications & Vehicle Fitment
- Part / OEM Code: AUTOSS-7725
- Compatible Two-Wheelers: REGULATOR RECTIFIER
- Brand / Specification: Autoss OEM Replacement
Fitment & Shipping FAQs
Q: Which bike models fit RAX 100 Regulator Rectifier (AUTOSS-7725)?
This RAX 100 Regulator Rectifier (Part/OEM Reference: AUTOSS-7725) is designed for compatible fitment with REGULATOR RECTIFIER. Please verify the mounting points and connector profile in the product photos before ordering.
Q: What is the catalog part number and brand for RAX 100 Regulator Rectifier?
The catalog reference code / MPN is AUTOSS-7725 under Autoss OEM Replacement, supplied by Autoss.in (Elegant Innovations).
Q: What are the shipping timelines across India on Autoss.in?
All spare parts on Autoss.in are carefully packed and shipped pan-India through tracked courier partners including Delhivery, Xpressbees, and iCarry.
