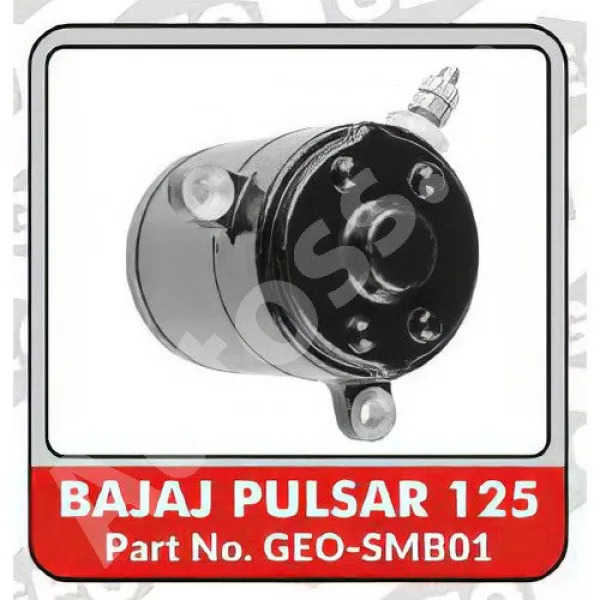

BAJAJ PULSER 125 SELF STARTER MOTOR

The Bajaj Pulser 125 Self Starter Motor delivers instant cranking power, robust electrical efficiency, and dependable engine startup in all riding environments. Precision engineered to stringent OEM standards, this heavy-duty motorcycle and scooter starter motor assembly replaces weak, noisy, or seized factory starters, restoring swift, effortless one-touch electric starting even in freezing weather and under high engine compression.

Workshop Guide & Diagnostic Standards for Bajaj Pulser 125 Self Starter Motor

Upgrading your machine with this factory-tested Self Starter Motor ensures reliable engine ignition, eliminates starter solenoid clicking, and protects the battery and wiring harness from excessive electrical current drain.

1. High-Torque 100% Pure Oxygen-Free Copper Armature Windings

This starter motor incorporates high-conductivity oxygen-free electrolytic copper wire machine-wound onto a high-silicon laminated armature core. Vacuum-impregnated with class-H thermosetting insulating varnish, the armature withstands extreme thermal expansion and electrical surges during high-amperage initial cranking cycles without shorting or melting. In addition, the balanced dynamic rotor geometry guarantees smooth rotary acceleration, eliminating harmonic vibrations and ensuring that maximum mechanical torque is delivered to the flywheel gear train with minimal battery voltage sag.

2. Permanent Magnet Stator Field & Neodymium Flux Density

Equipped with high-remanence permanent magnets firmly bonded into the steel outer stator shell, the motor creates a powerful, concentrated stationary magnetic field. This high magnetic flux density delivers instantaneous breakaway torque at zero RPM, spinning heavy motorcycle flywheels past top dead center (TDC) compression with minimal battery amp consumption.

3. High-Conductivity Copper-Graphite Carbon Brushes & Constant-Tension Springs

The internal brush plate features specialized copper-graphite composite carbon brushes that ensure minimal contact resistance and high current transfer capability. Tempered phosphor bronze torsion springs maintain steady brush pressure against the commutator segments, eliminating brush bounce, arcing, and commutator bar pitting across thousands of engine starts.

4. Precision Commutator Mica Undercutting & Diamond Turning

The copper segment commutator is diamond-turned to within 0.005 mm total indicator reading (TIR) for absolute concentricity. Precision mica insulation undercut slots between bars prevent conductive carbon dust bridging, ensuring smooth, vibration-free brush sweep and eliminating intermittent starter cutouts.

5. Starter Clutch Bendix Drive & Splined Shaft Engagement Dynamics

Featuring a case-hardened alloy steel splined output shaft, this starter motor interfaces seamlessly with your two-wheeler’s starter idle gear train or overrunning sprag clutch. Precision gear tooth geometry ensures instant, quiet mesh without gear grinding, while heat-treated splines withstand severe rotational shock loading during engine kickbacks.

6. Double-Lip Nitrile Oil Seals & Sintered Bronze Bushing Alignment

The drive end bell housing is fitted with a durable fluoroelastomer (FKM) double-lip oil seal and high-temperature O-ring that prevent hot crankcase engine oil and road water spray from breaching the dry motor casing. Self-lubricating sintered bronze sleeve bushings ensure frictionless shaft support and precise armature centering.

7. Starter Solenoid Relay Voltage Drop & Ground Cable Testing

Workshop technicians must perform a circuit voltage drop test across the starter relay terminals and ground return paths before concluding installation. Voltage drop must not exceed 0.4 volts under load. Ensure battery terminal clamps are tightly secured and free of white lead-sulfate corrosion to guarantee full 12-volt battery power reaches the motor terminal. Furthermore, verify that the starter solenoid switch contacts engage firmly without chatter or high-resistance pitting, ensuring instantaneous current transfer during cold morning ignition cycles.

Technical Specifications

Frequently Asked Questions: Bajaj Pulser 125 Self Starter Motor
