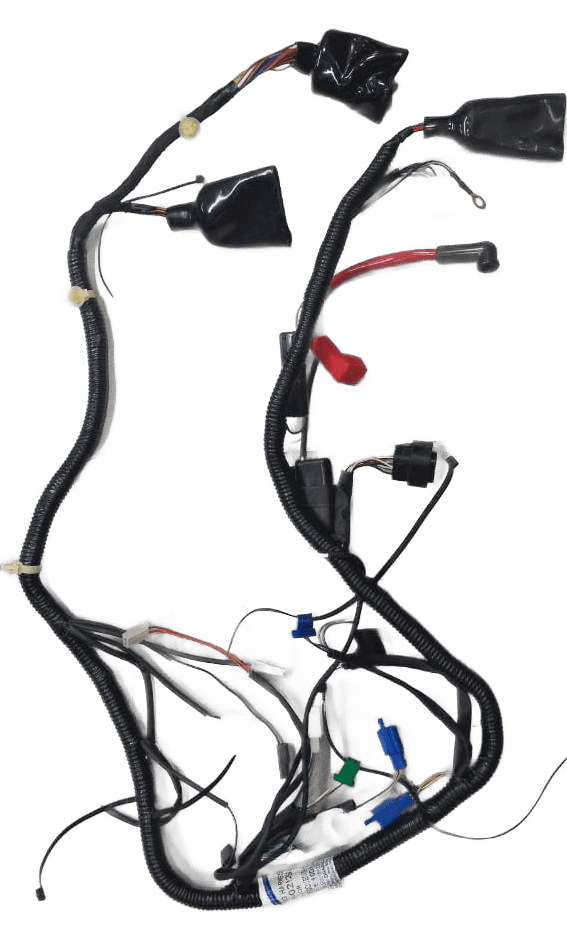

Bajaj Pulsar 150 / 180 DTS-i ES Wiring Harness (Two Pin Stand Switch) (Red Coupler)(Alloy Wheel Model)

Restore rock-solid electrical reliability to your two-wheeler with the genuine Bajaj Pulsar 150 180 Dts I ES Wiring Harness Two Pin Stand Switch Red Coupleralloy Wheel Model from Autoss.in. Engineered to exact OEM factory schematics, this heavy-duty main wiring loom guarantees zero voltage drop, flame-retardant safety, and seamless plug-and-play installation across all vehicle circuits.

Bajaj Pulsar 150 180 Dts I ES Wiring Harness Two Pin Stand Switch Red Coupleralloy Wheel Model – OEM Specifications & Electrical Architecture

The Bajaj Pulsar 150 180 Dts I ES Wiring Harness Two Pin Stand Switch Red Coupleralloy Wheel Model serves as the central electrical backbone of your motorcycle or scooter, seamlessly routing high-amperage battery charging currents, precision electronic ignition pulses, sensor signals, and road lighting. Built using 99.9% pure annealed electrolytic copper conductors (AVSS automotive grade) and encased in flame-retardant corrugated conduit, it prevents short circuits, insulation melt, and parasitic battery drain under demanding Indian weather conditions.

Key Features & Engineering Highlights

• 100% Pure Electrolytic Copper Wires: High-strand multi-core copper conductors ensure minimal internal electrical resistance, preventing starter relay clicking, weak spark generation, and headlight dimming.
• Flame-Retardant Nylon 66 Couplers: Equipped with factory-molded male and female terminal connectors rated up to 130°C, complete with positive vibration-proof locking latches.
• Factory-Accurate Color Coding: Every single wire corresponds precisely to OEM wiring diagrams, ensuring quick, hassle-free diagnostic tracing for mechanics and auto electricians.
• Heavy-Duty Abrasion & Heat Shielding: High-flex PVC corrugated split-loom tubing combined with woven fiberglass heat sleeves protects critical wire runs near the exhaust header and cylinder block.
• Pre-Wired Blade Fuse Protection: Integrated heavy-duty blade fuse box protects sensitive digital CDI/ECU units, ignition coils, and mobile charging sockets against voltage surges.

Workshop Installation & Electrical Diagnostic Guidelines

To ensure trouble-free operation and maximum durability from your Bajaj Pulsar 150 180 Dts I ES Wiring Harness Two Pin Stand Switch Red Coupleralloy Wheel Model, professional two-wheeler mechanics recommend following these 4 essential workshop guidelines:

1. Chassis Routing & Tension-Free Steering Clearance: Lay the harness strictly along the factory chassis backbone. Leave ample slack around the steering neck triple-clamp and turn the handlebars fully lock-to-lock in both directions. Ensure the loom does not stretch, pinch, or rub against sharp steering stop lugs or the fuel tank seam during sharp turns.
2. Chassis Earth Ground Verification: Clean all ring-terminal earth contact surfaces on the frame using fine emery paper to remove paint and rust before tightening grounding bolts. Using a digital multimeter, confirm ground resistance is below 0.2Ω. A compromised chassis ground is the primary culprit behind erratic turn signal flash rates, dim tail lamps, and CDI misfires.
3. Coupler Dielectric Protection & Water Drainage: Apply a light coating of dielectric silicone grease inside multi-pin terminal blocks before locking them together. Always arrange harness branches with a subtle downward drip-loop before entering the fuse box, CDI, or ECU to prevent rainwater from capillary tracking directly into electrical terminals during monsoons.
4. Fuse Box & Relay Circuit Isolation: Inspect the integrated fuse block and ensure OEM-specified fuse ratings (e.g. 10A, 15A, or 20A) are firmly seated. Never substitute a blown fuse with raw copper wire. When connecting the high-amperage starter motor solenoid leads, torque battery terminal screws securely to avoid high-resistance arching.
